Vertical Glass Polishing Machine

Name: Vertical Glass Polishing Machine
Brand: SAINT-FECO
Availability: InStock
Rating: 5 (1 reviews)

1.This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time
2. This machine adopts 9 motors.

Get A Quote

Features:

1. This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.

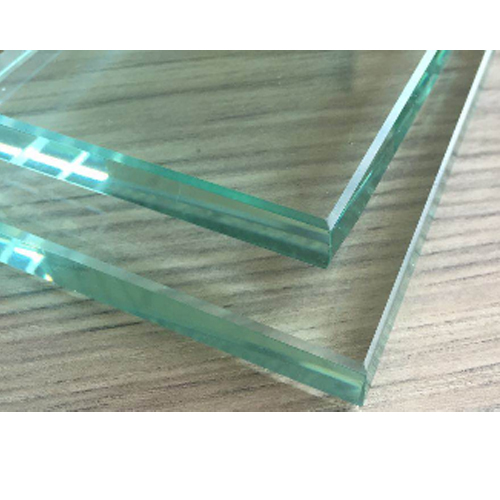

2. The flat surface after polishing is close to bright and clean degree of glass matrix.

3. When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.

4. It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.

Parameters:

Model	SFZM9325
power supply	380V/50HZ/3P
Power	19.75KW
Max.Glass Size	2440x3660mm
Min.glass size	80*80mm
Glass thickness	3-25mm
Weight	3000KG
Transmission	Stepless speed regulation
Process speed	0.7-7m/min
Machine size	700012002500mm

Detailed Pictures:

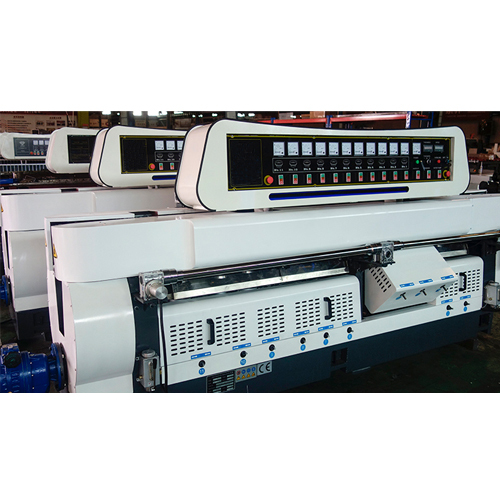

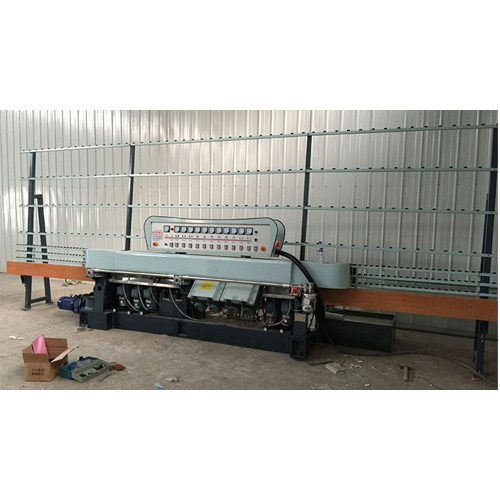

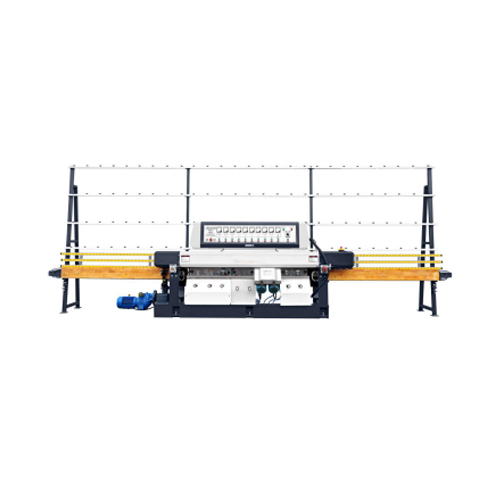

Vertical Glass Polishing Machine
