Name: Silicone Automatic Sealing Robot
Brand: SAINT-FECO
Availability: InStock
Rating: 5 (1 reviews)

Features:

1.The tank chain transmission structure has high bearing capacity and its durability.

2.Easy to maintain , suitable for large sacle window door factory.

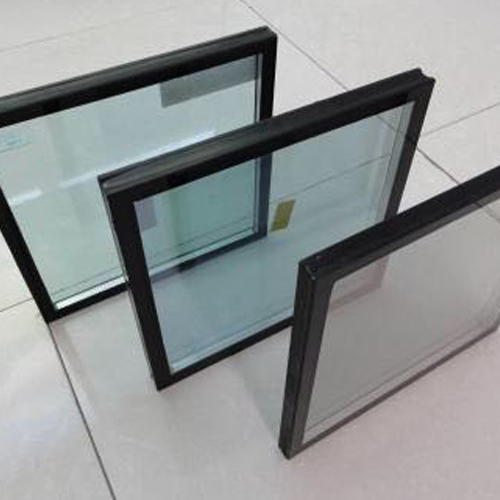

3.Can coat triple glass and double glass

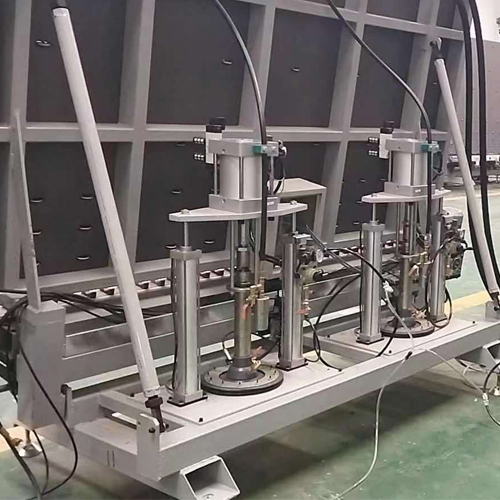

4.Complete dual glue supply system(optional) including mixer.

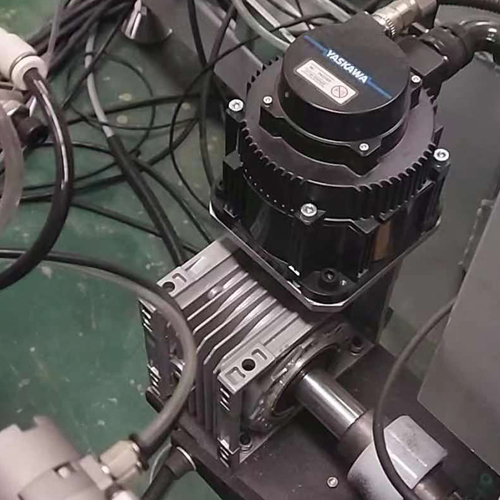

5.Servo system adopts international famous brand to guarantee stability.

6.Directly connect with the insulating glass line to sealing the glue, easy to operate

7.Friendly user interface, workers are easy to handle.

8.The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner under the condition that the glass are cut levelly ad without dislocation after pressing.

Parameters:

Model	SFT-2500	SFT-2000
Voltage	380V/50HZ	380V/50HZ
Power	18KW	18KW
Squeezing Pressure	32Mpa	32Mpa
Air Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Max.Glass Size	2500x3500mm	2000x2500mm
Min.Glass Size	300x450mm	300x450mm
Working Speed	5-40m/min	5-40m/min
Dimension	11100x1500x3600mm	8600x1500x3100mm
Weight	3000KGS	2500KGS

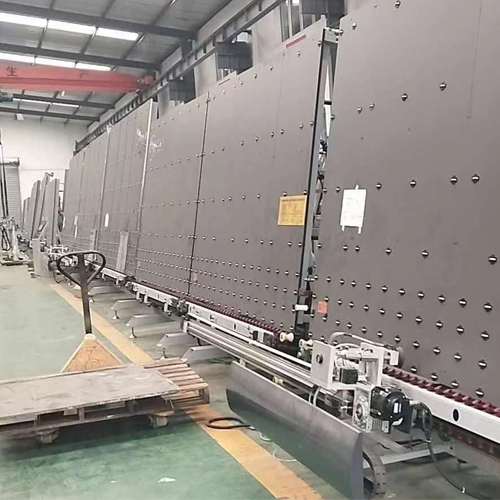

Detailed Pictures:

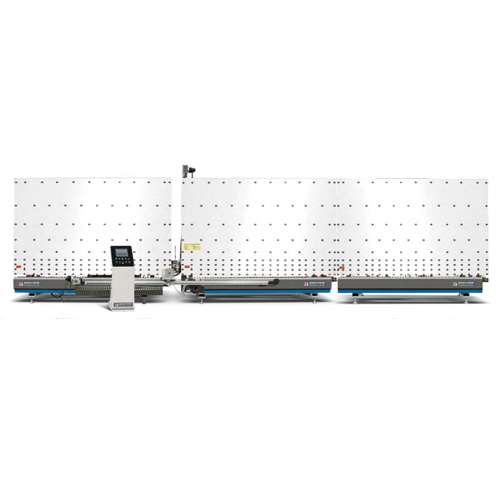

Silicone Automatic Sealing Robot
