Features
1.Used for processing PVC profile end ,step face and slot etc
2.Super precision main shaft insures accurate and steady processing
3.Automatic feed, small labor intensity
4.Convenient tool setting is due to adjustable worktable
5.Only can milling one-piece profiles
Parameters
| Power supply | 220V/50Hz |
| Motor Speed | 2850rpm/min |
| Air Pressure | 0.5-0.8Mpa |
| Saw Blade |
(Φ200~Φ110)xΦ32 |
| Open tenon (H x W) | 70 x 45 mm |
| Location turning angle | 35°~90° |
| Feeding journey of worktable | 0~320 mm |
| Dimension | 850 x 740 x 1280 mm |
| Weight | 212KGS |

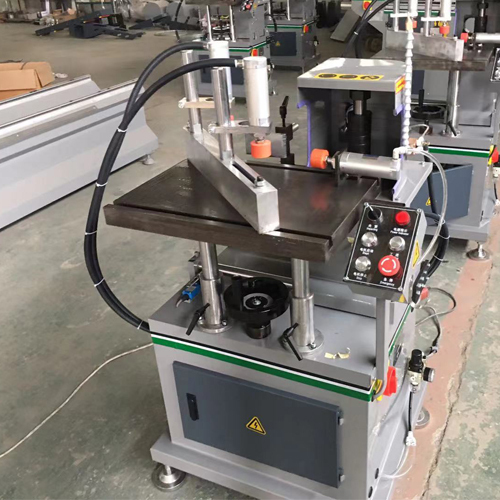

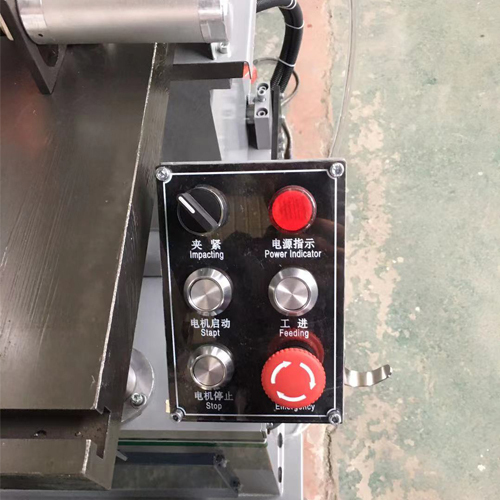

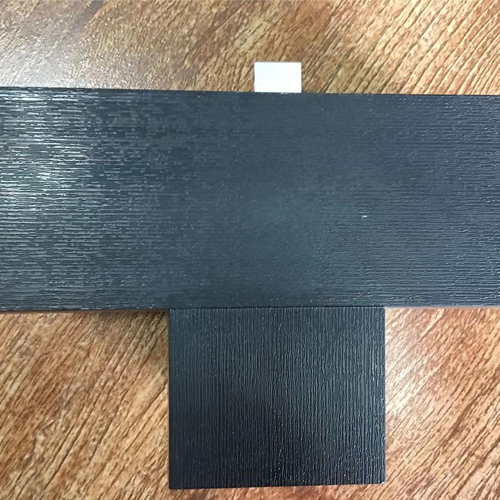

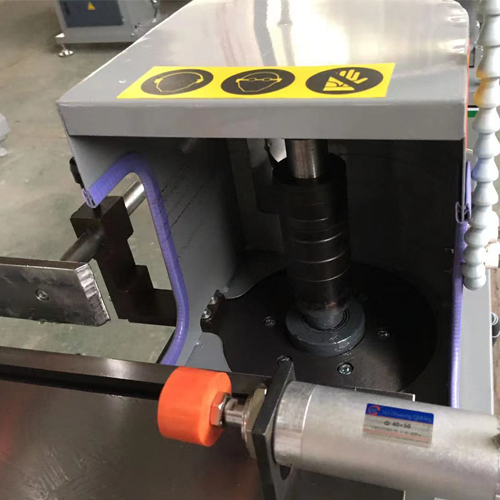

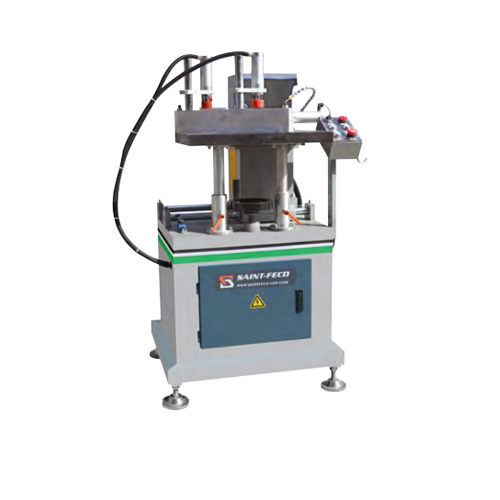

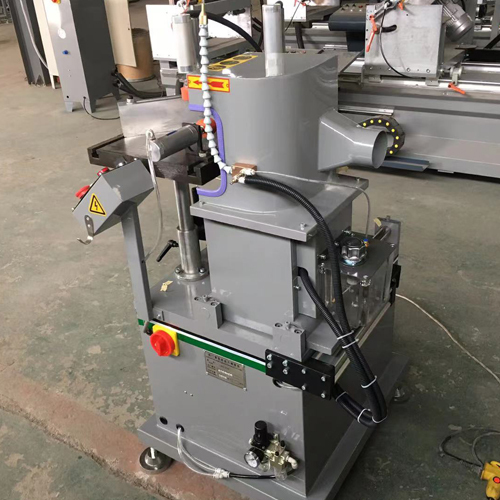

Detailed Pictures:
