Features:
1.Used to cut PVC Profile -45° ~90°~45°.
2.Pressure Drive and Linear feeding steadly.
3. Motion of head by imported linear bearing pair .
4. Solid and Rigid structure , Safe and Reliable , High Precision , Large Range ,Efficiency and Easy Operation
Parameters:
| Model | LJZ2-450x3700 |
| Voltage | 380V/50HZ |
| Power | 2.2KW+0.75KW |
| Air Pressure | 05-0.8Mpa |
| Rotary Speed | 2850rpm/min |
| Cutting Length | 400-3700mm |
| Cutting Width | 120mm |
| Cutting Height | 200mm |
| Cutting Angle | -45° 90° 45° |
| Feeding speed | 0--3m/min |
| Dimension | 4700x1400x1500mm |

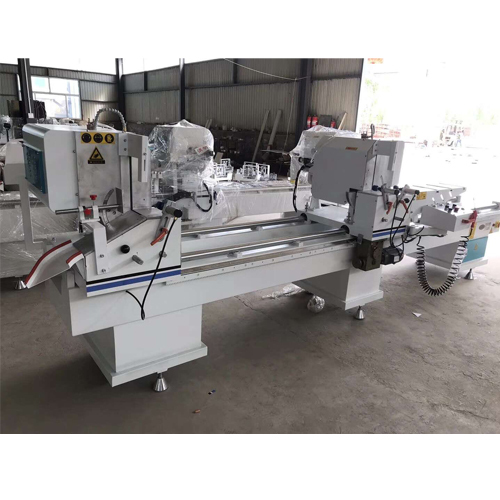

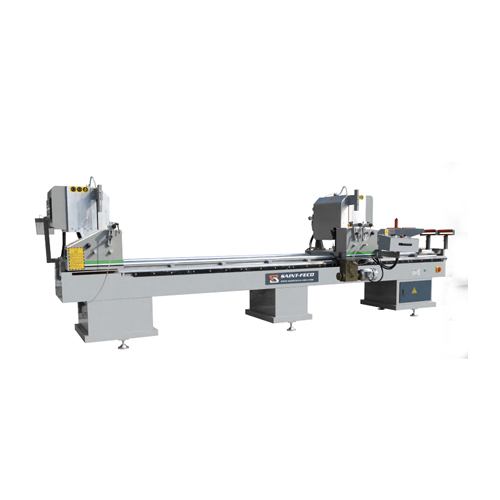

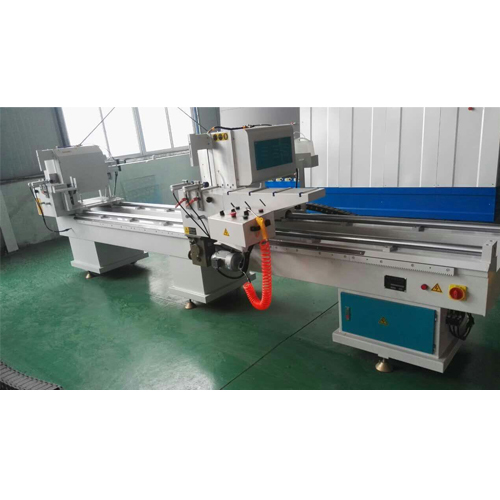

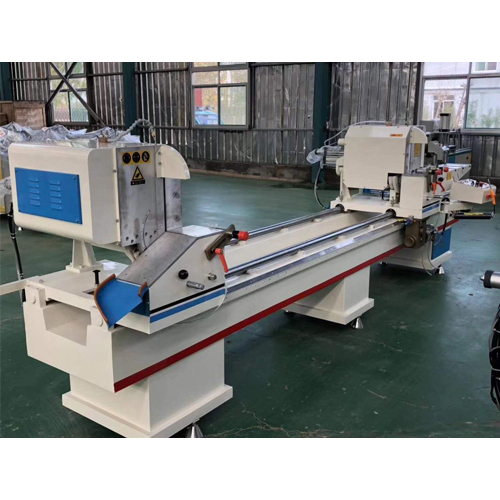

Detailed Pictures:
