1.PLC Control ,touch screen human-machine interface

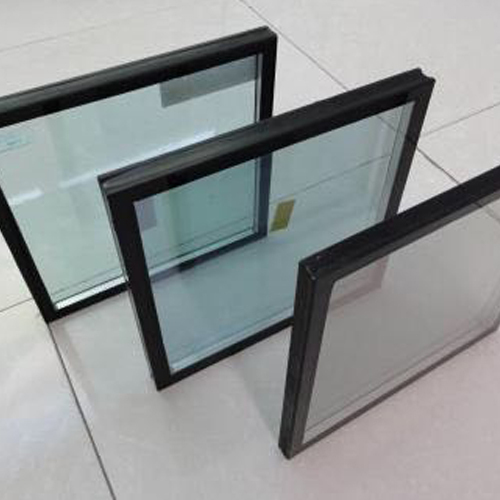

2.It can make double glass, triple glass.
3.Automatic recognition of coated glass and LOW-E glass film.
4.Perfect washing performance for on/off line LOW-E glass.
5.Air kinves automatic adjust according to thickness of glass.
6.Automatic checking system for glass dimension and thickness.
7.Servo and torque driving system for accurate pressing.

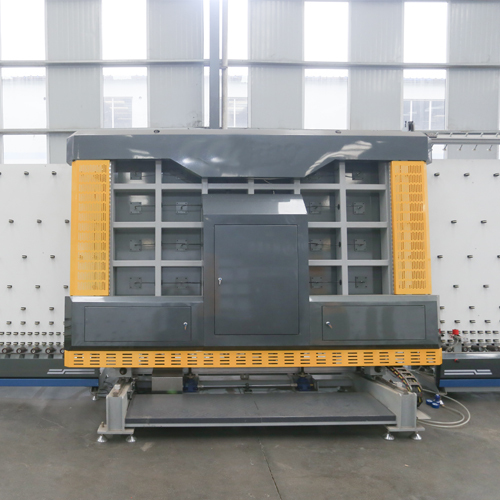

8.Hi-tech press machine with 3 or 4 axis linkage servo system, accurate and efficient assembly gas filling press function.
9. Online argon filling function, filling rate can be up to 90%.
Parameters
| Model | SFCH-2500 | SFCH-2000 |
| Voltage | 380V/50HZ | 380V/50HZ |
| Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Min.Glass Size | 300x450mm | 300x450mm |
| Max.Glass Size | 2500x3000mm | 2000x2500mm |
| Glass Thickness | 3-18mm | 3-18mm |
| Transfer Speed | 8-45m/min | 8-45m/min |
| Filling Time | 3-5 s | 3-5 s |
| LOW-E Brush | 6 pcs | 6 pcs |
| Dimension | 24600x2000x3700mm | 20800x2000x3200mm |

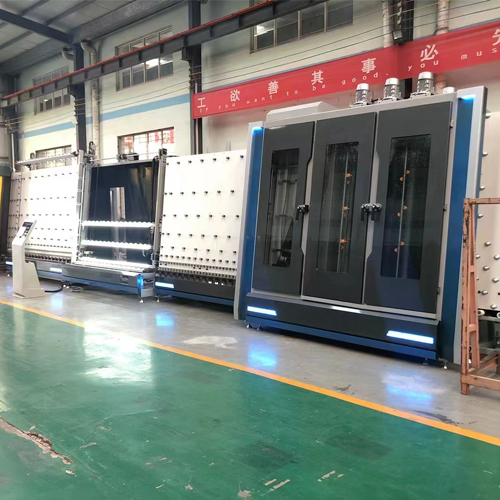

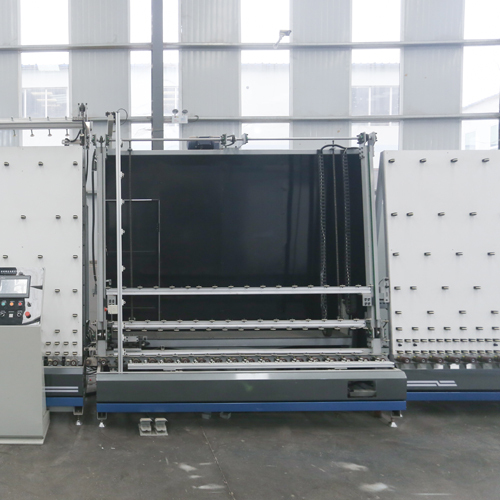

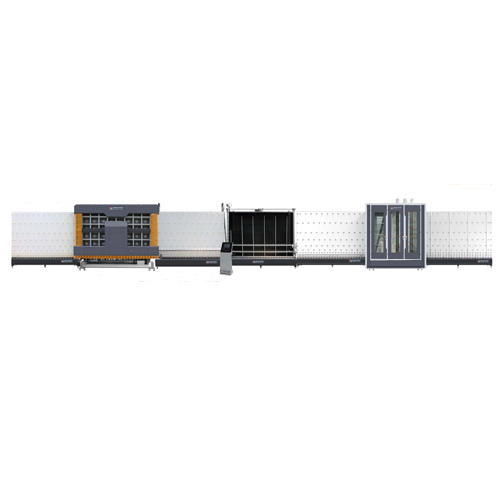

Detailed Pictures
