Name: Inside and Outside Pressing Insulating Glass Production Line
Brand: SAINT-FECO
Availability: InStock
Rating: 5 (1 reviews)

Features:

1.PLC Control ,touch screen human-machine interface

2.It can make double glass, triple glass, big and small glass ect.

3.Automatic recognition of coated glass and LOW-E glass film.

4.Imported glass suction cup and vacuum generator makes better glass catching effect

5.The protection panel has been processed with plastic spraying to achieve good performance and long life time

6.Cleaning parts adopts stainless steel and resistance material

7.All electrical parts using international famous brand.

8.The pressing part can be widen to 450 mm for easy maintenance

9.Free choice of inside and outside pressing function

10.Outside pressing adopts central positioning function.

Parameters:

Model	SFW-2500	SFW-2200
Voltage	380V/50HZ	380V/50HZ
Power	30KW	28KW
Air Pressure	0.5-0.8Mpa	0.5-0.8Mpa
Max.Glass Size	2500x3000mm	2200x3000mm
Min.Glass Size	280x450mm	280x450mm
Working Direction	Right to Left or Left to Right	Right to Left or Left to Right
Glass Thickness	3-18mm	3-18mm
Trasnfer Speed	8-45m/min	8-45m/min
Weight	7000KGS	6000KGS
Dimension	22200x2000x3700mm	21200x2000x3700mm

Detailed Pictures:

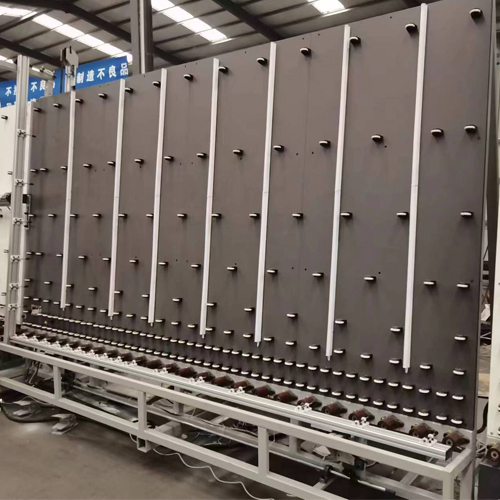

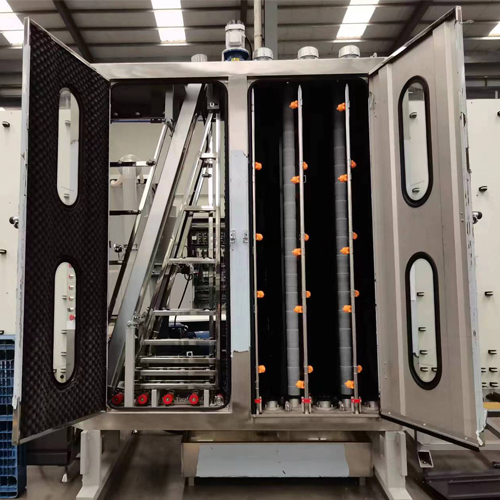

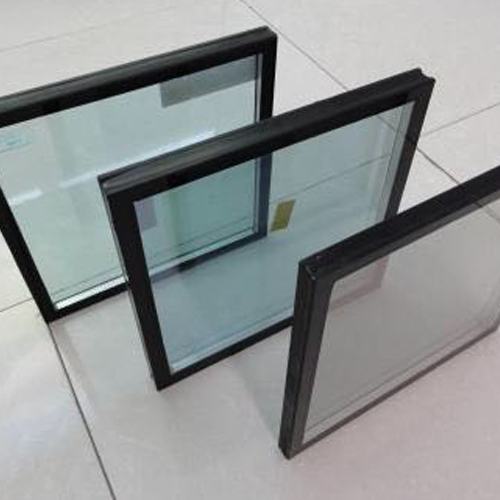

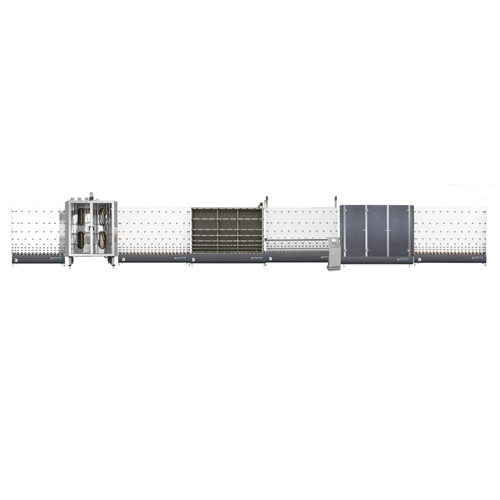

Inside and Outside Pressing Insulating Glass Production Line
