Features
1. This machine is used for filling desiccant into aluminum spacer
2. PLC Control, stable and easy to handle
3. This machine can automatically drill the holes, fill the desiccant and seal the glue.
4. The filling height can be adjusted according to the size of the spacer bar.
Parameters
| Model | SFG-03 |
| Voltage | 220V/50HZ |
| Power | 1.0KW |
| Air Pressure | 0.6-0.8Mpa |
| Desiccant Diameter | 0.5-0.9mm |
| Filling Speed | 5-8s |
| Aluminum Frame Width | 6-24mm |
| Dimension | 1200x800x2900mm |

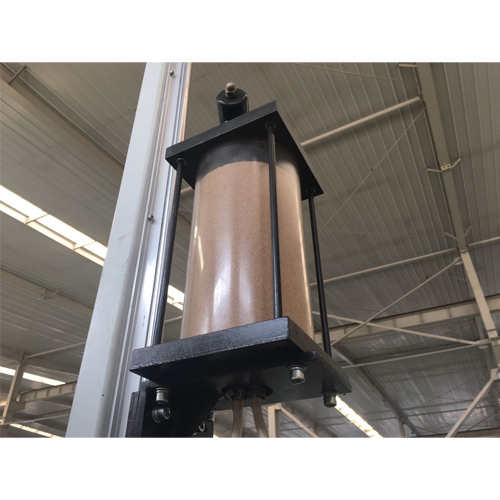

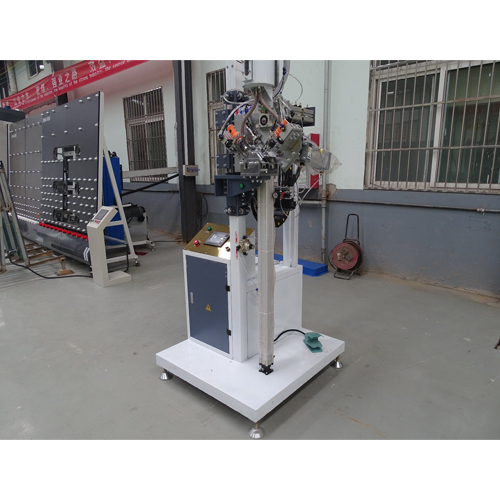

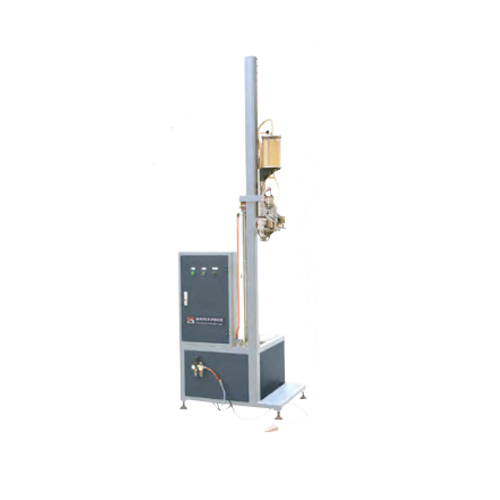

Detailed Pictures
