Name: Aluminum Profile CNC End Milling Machine
Brand: SAINT-FECO
SKU: 00148
Availability: InStock
Rating: 5 (1 reviews)

Features:

1.This machine is used for end-face processing of various kinds of door and window profiles and curtain walls.

2.Using high-precision guide rail sliders and ball screws to ensure smooth operation and high positioning accuracy.

3.Using high-quality and high-speed drive motor, low noise, strong cutting ability

4.The operation panel adopts touch screen, which is convenient for programming..

5.The end-face processing of multiple profiles can be completed at the same time to improve productivity.

6.Automatically adjust the position by system, and can automatically complete milling of different profiles.

7.Positioning via PLC control and servo motor drive, very high work efficiency.

8.It can realize 0-degree and 90-degree end milling.

9. Adopt the fully-guarded protect cover.

Parameters:

Model	LXDB-350
Voltage	380V/50HZ
Motor Power	3.0KW
Motor Rotary Speed	2800 RPM
Work Table Range	530x210mm
Milling Blade	Φ350mm
Air Pressure	0.5 - 0.8Mpa
Weight	500KGS
Dimension	2100x1250x1780

Detailed Pictures:

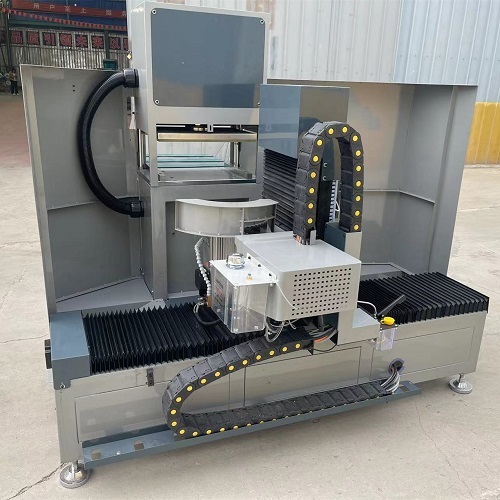

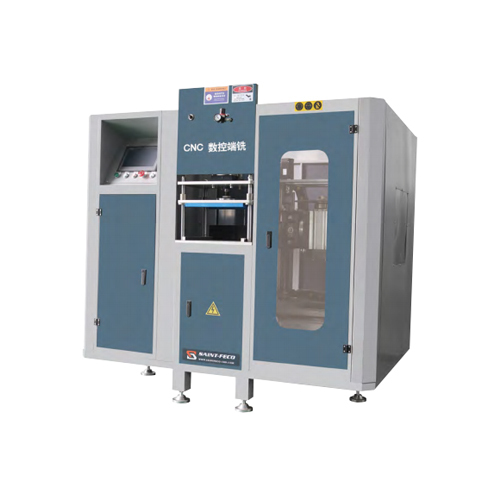

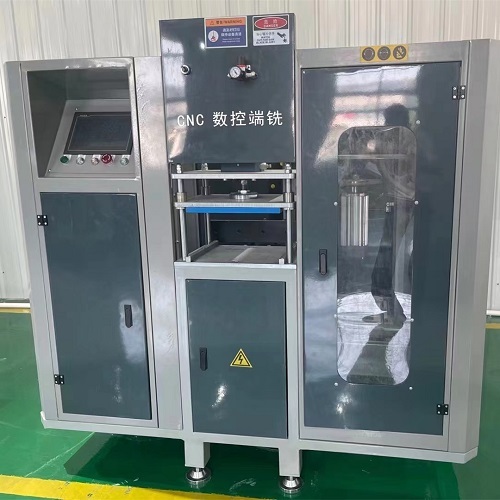

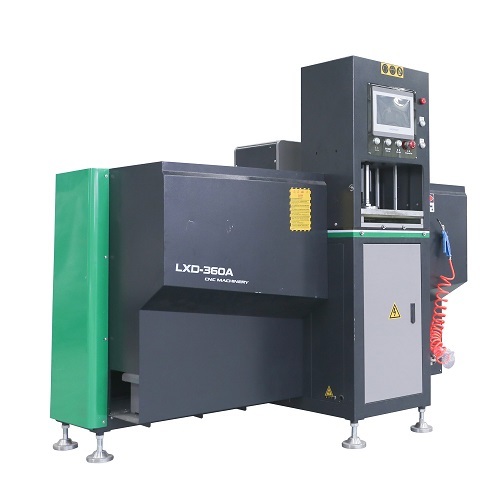

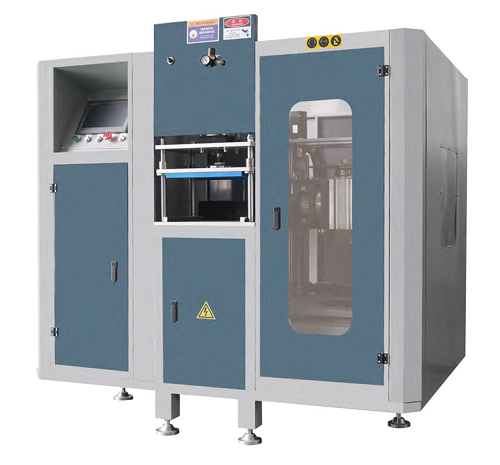

Aluminum Profile CNC End Milling Machine
