Name: Aluminum Profile 4 Axis CNC Machining Center
Brand: SAINT-FECO
Availability: InStock
Rating: 5 (1 reviews)

Features:
1. This machine is used for drilling and milling different holes for normal and industrial aluminum profiles.

2.The servo motor drives the worktable, it can process any angle from 0° to 180° for pie and curved profile processing.

3.Adopts Industrial SYNTEC CNC control system which realizes the automatic processing with high precision.

4.Adopts high-strength welding technology, to guarantee machine steady processing.

5.Adopts imported guide rail, ball screw, and servo motor for high-precision processing.

6.All low voltage electrical parts using Schneider brands.

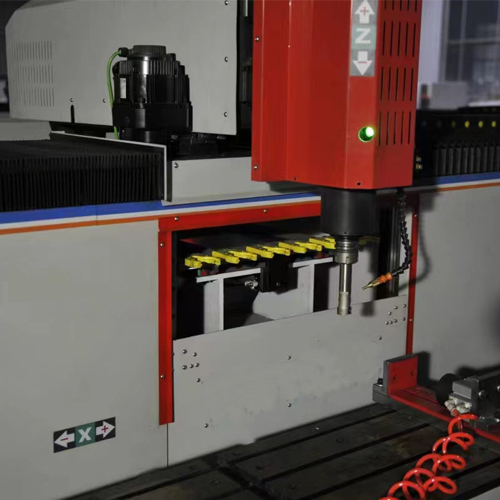

7.Adopts 6 auto tool changer, for different holes process.

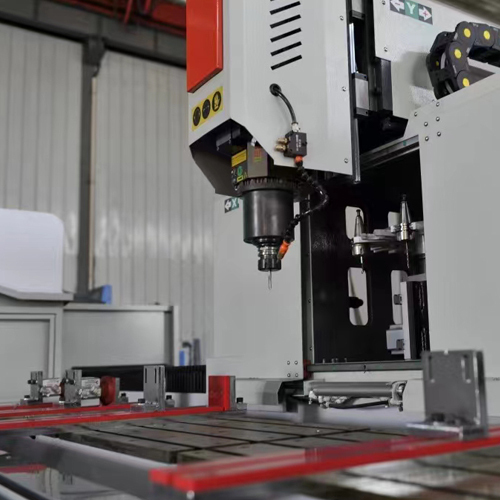

8.Equipped with the 9KW motorized spindle, which is powerful and high efficiency.

9.Cooling system adapt micro spry system, environmentally friendly. The lubrication system is automatic.

10.Machine own take the CAD/CAM software, easy programming.

Parameters:

Model	LZX-CNC-3000
Work stroke
X Axis Stroke	3000mm
Y Axis Stroke	350mm
Z Axis Stroke	300mm
A Axis Stroke (work table)	0-180°
Precision
X axis position precision	±0.05mm
Y/Z axis position precision	±0.05mm
Roughness	Ra6.3μm
Power
Machine Power	12.5KW
Spindle Power	9KW
Working Pressure	0.5-0.8Mpa
Work Speed
X Feeding Speed	0-50m/min
Y Feeding Speed	0-40m/min
Z Feeding Speed	0-30m/min
Spindle Speed	0-24000rpm/min
Tools Specification
Spindle Tapper	IS030
ATC	6 Tool Magazine
Machine Specification
Machine Voltage	380V 50HZ 3PH
Dimension	5500x1700x2500mm

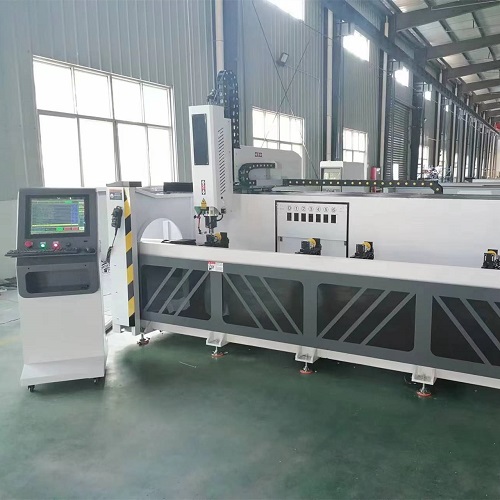

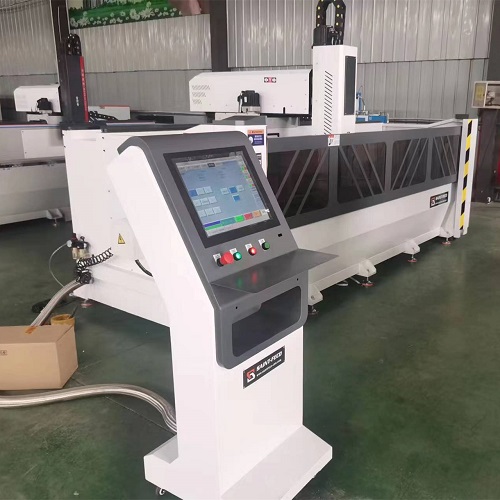

Detailed Pictures:

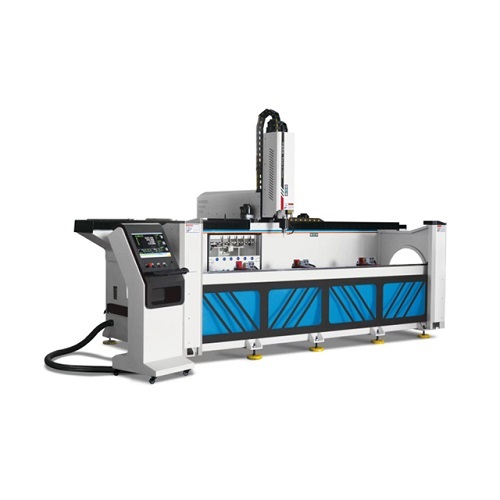

Aluminum Profile 4 Axis CNC Machining Center
