Name: Aluminum Composite Panel Grooving Machine
Brand: SAINT-FECO
SKU: 00131
Availability: InStock
Rating: 5 (1 reviews)

Features

1. It is mainly used for the grooving and cutting of ACP for curtain walls and pure aluminum plates, PVC and fireproofing plates, MDF panels and so on.

2.Use special imported hard alloy blades and tools, featuring superb high-speed balance performance.

3.Groove depth is controlled by a specialized eccentric bearing system. It can be adjusted within 0 to 10 mm freely. The deep groove deviation is less than or equal to 0.15 mm.

4. High work precision, good durability, high-speed operation, high efficiency and long service life.

5. The cutting head can realize the horizontal and vertical cutting or grooving. Easy adjusting, accurate positioning, flexible operating and stability.

Parameters:

Model	SEM-2000
Power Supply	380V 50HZ 3PH
Motor Power	3 KW
Rotary Speed	2840 r/min
Diameter of Cutter	φ250 × φ32 × 15 mm φ250 × φ32 × 3 mm
Grooving depth	0-8mm
Cutting depth	ACP: 20mm / Al-panel 8mm
Work range	1600 x 4100mm
Dimension (L × W × H)	5100 mm × 1000 mm × 2450 mm
Machine Weight	1800 kg

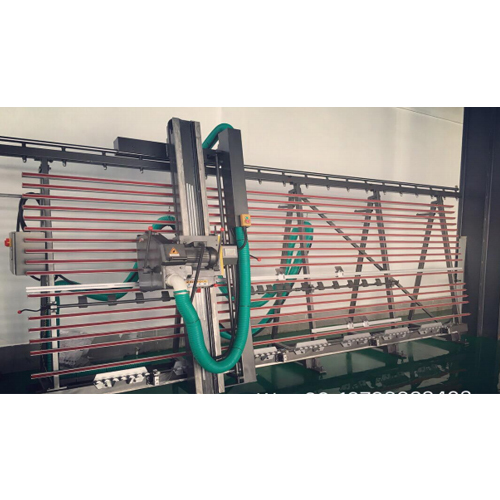

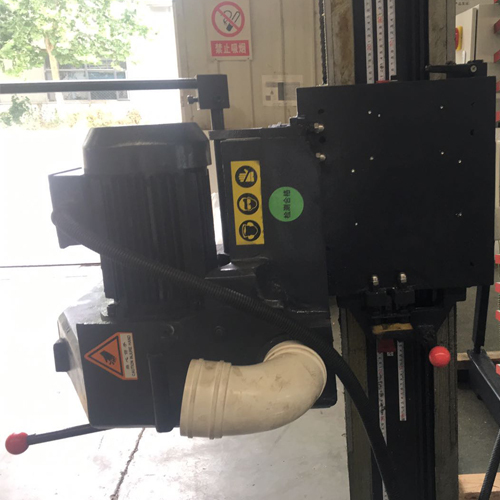

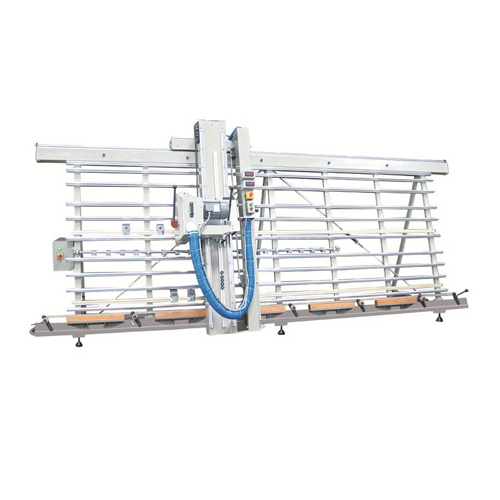

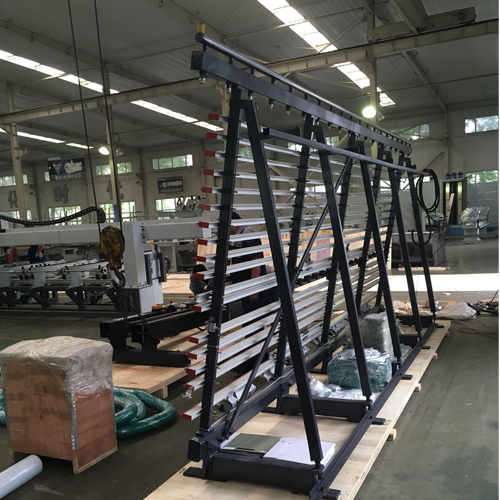

Detailed Pictures

Aluminum Composite Panel Grooving Machine
