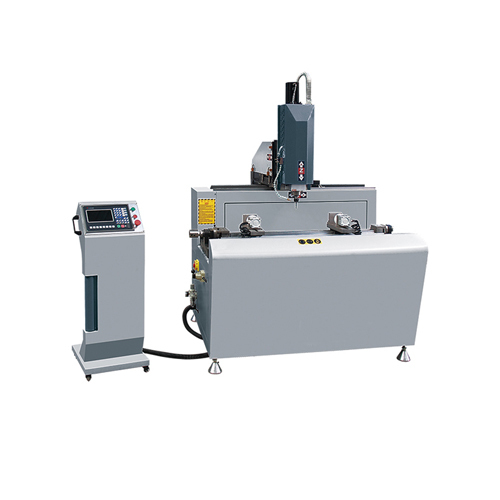

Name: Aluminum CNC Drilling Milling Machine
Brand: SAINT-FECO
SKU: 00123
Availability: InStock
Rating: 5 (1 reviews)

Features:

1.The machine is used for drilling and milling all kinds of slot holes on the aluminum profile.

2.It adopts the CNC controller which can realize automatic processing.

3.It adopts the high-speed electric main spindle, which is very high work efficiency.

4.Transmission parts adopt the high-precision ball screw and guide rail with very high work accuracy.

5.The system takes the work shape of magazines, easy programming, and learning.

6.The orktable can turn around -90°,~0° ~+90°. which can realize aluminum profile three sides processing by one-time clamping.

Parameters:

Model	LZXA-CNC-1500
Work stroke
X Axis Stroke	1500mm
Y Axis Stroke	120mm
Z Axis Stroke	120mm
Work Table	-90° 0° and +90°
Precision
X axis position precision	±0.05mm
Y/Z axis position precision	±0.05mm
Power
Machine Power	4.5KW
Spindle Power	3.5KW
Working Pressure	0.5-0.8Mpa
Work Speed
X Working Speed	0-60m/min
Y Working Speed	0-30m/min
Z Working Speed	0-30m/min
Spindle Speed	0-15000RPM
Machine Specification
Machine Voltage	380V 50HZ 3PH
Dimension	2700x1450x1950mm
Weight	650KGS

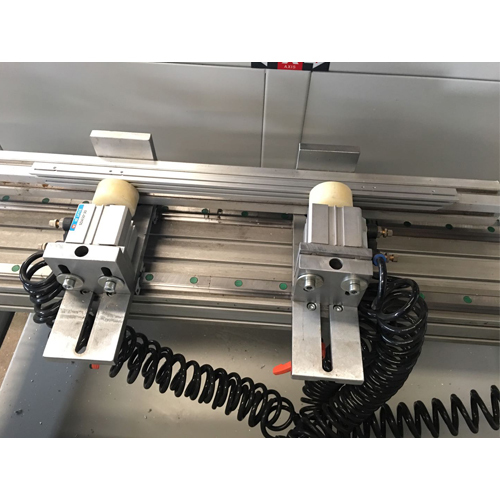

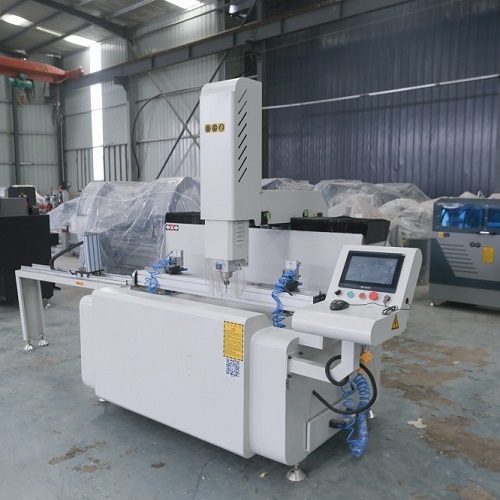

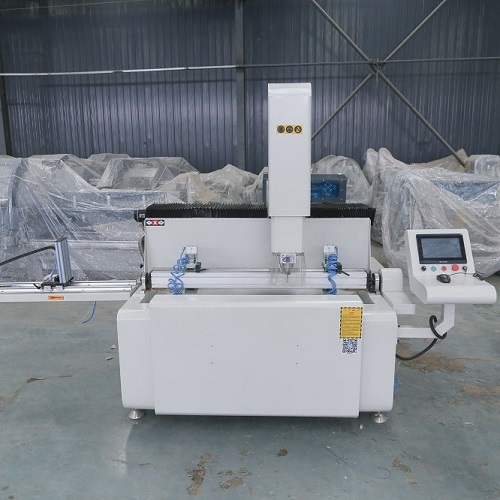

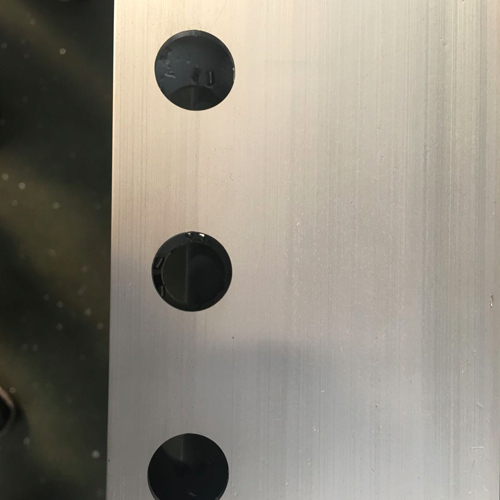

Detailed Pictures：

Aluminum CNC Drilling Milling Machine
